●Standards: ISO2531, EN545, EN598
●Materials: Ductile iron
●Nominal sizes: DN80—2600mm
●Pressure: PN10/16/25/40
●Corrosion protection: cement lining and zinc and bitumen coating.
●Package: wooden case with plastic layer, wooden pallets with plastic layer, steel crates.

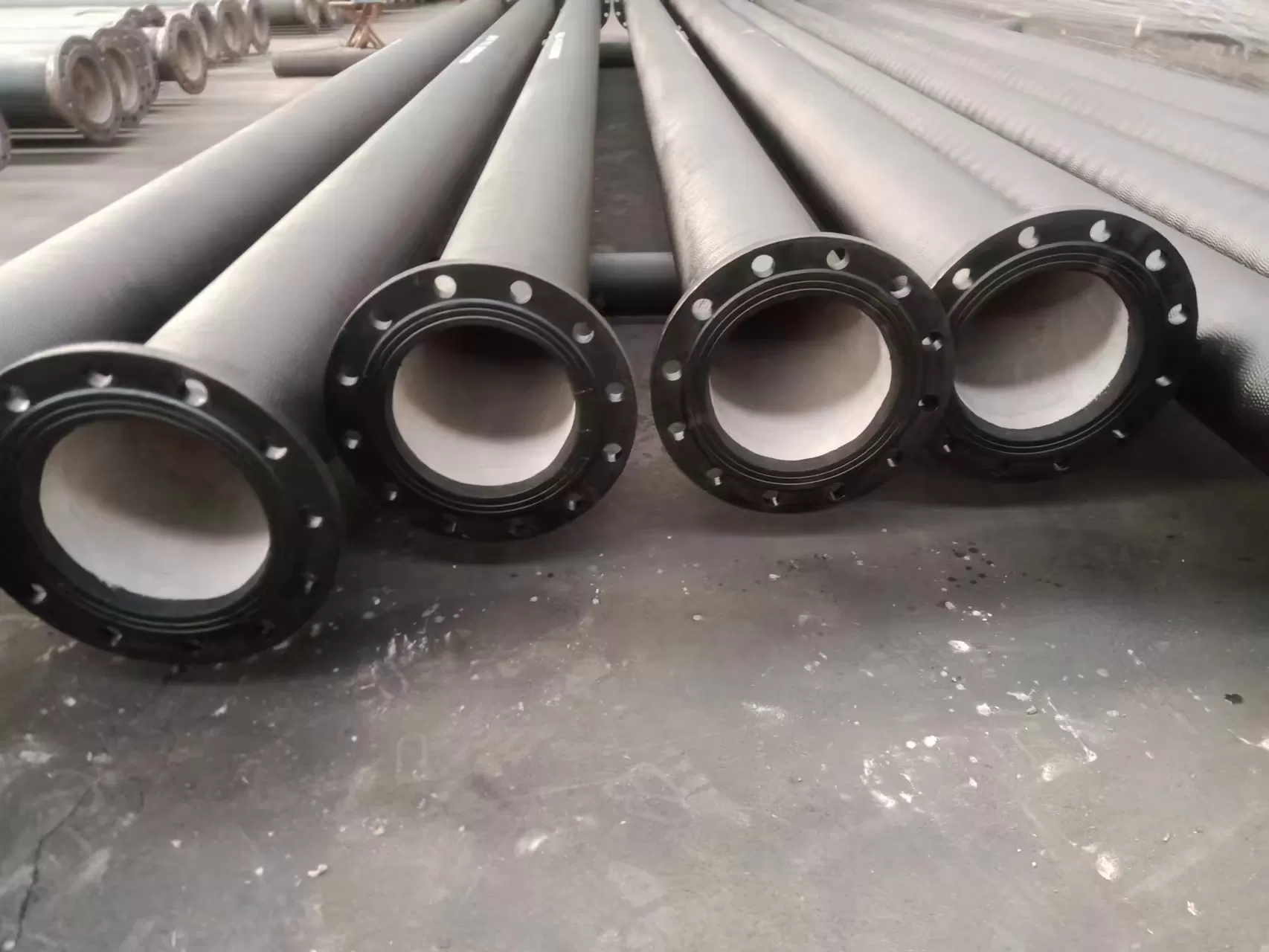

●Features: Flanged pipes with screwed-on flanges, Flanged pipes with cast-on flanges, Flanged pipes with welded-on flanges are available.
Dimensions: PN16
|
DN |
D1 |
D2 |
D3 |
DE |
C |
F |
S |
R |
Bolts |
Mass (kg) |
||
|
d |
size |
n |
||||||||||
|
80 |
200 |
160 |
132 |
98 |
19 |
3 |
15 |
6 |
19 |
M16 |
8 |
2.9 |
|
100 |
220 |
180 |
156 |
118 |
19 |
3 |
15 |
6 |
19 |
M16 |
8 |
3.3 |
|
150 |
285 |
240 |
211 |
170 |
19 |
3 |
15 |
8 |
23 |
M20 |
8 |
4.9 |
|
200 |
340 |
295 |
266 |
222 |
20 |
3 |
16 |
8 |
23 |
M20 |
12 |
6.6 |
|
250 |
400 |
355 |
319 |
274 |
22 |
3 |
17.5 |
10 |
28 |
M24 |
12 |
9.2 |
|
300 |
455 |
410 |
370 |
326 |
24.5 |
4 |
19.5 |
10 |
28 |
M24 |
12 |
12.4 |
|
350 |
520 |
470 |
429 |
378 |
26.5 |
4 |
21 |
10 |
28 |
M24 |
16 |
17.2 |
|
400 |
580 |
525 |
480 |
429 |
28 |
4 |
22.5 |
10 |
31 |
M27 |
16 |
21.9 |
|
450 |
640 |
585 |
548 |
480 |
30 |
4 |
24 |
12 |
31 |
M27 |
20 |
26.7 |
|
500 |
715 |
650 |
609 |
532 |
31.5 |
4 |
25 |
12 |
34 |
M30 |
20 |
37.0 |
|
600 |
840 |
770 |
720 |
635 |
36 |
5 |
29 |
12 |
37 |
M33 |
20 |
57.3 |
|
700 |
910 |
840 |
794 |
738 |
39.5 |
5 |
27.5 |
16 |
37 |
M33 |
24 |
57.0 |
|
800 |
1025 |
950 |
901 |
842 |
43 |
5 |
30 |
16 |
40 |
M36 |
24 |
72.0 |
|
900 |
1125 |
1050 |
1001 |
945 |
46.5 |
5 |
32.5 |
16 |
40 |
M36 |
28 |
90.0 |
|
1000 |
1255 |
1170 |
1112 |
1048 |
50 |
5 |
35 |
16 |
43 |
M39 |
28 |
122 |
|
1100 |
1355 |
1270 |
1218 |
1152 |
53.5 |
5 |
37.5 |
20 |
43 |
M39 |
32 |
141 |
|
1200 |
1485 |
1390 |
1328 |
1255 |
57 |
5 |
40 |
20 |
49 |
M45 |
32 |
189 |
|
1400 |
1685 |
1590 |
1530 |
1462 |
60 |
5 |
42 |
20 |
49 |
M45 |
36 |
216 |
|
1600 |
1930 |
1820 |
1750 |
1668 |
65 |
5 |
45.5 |
20 |
56 |
M52 |
40 |
308 |
|
1800 |
2130 |
2020 |
1950 |
1875 |
70 |
5 |
49 |
20 |
56 |
M52 |
44 |
362.2 |
