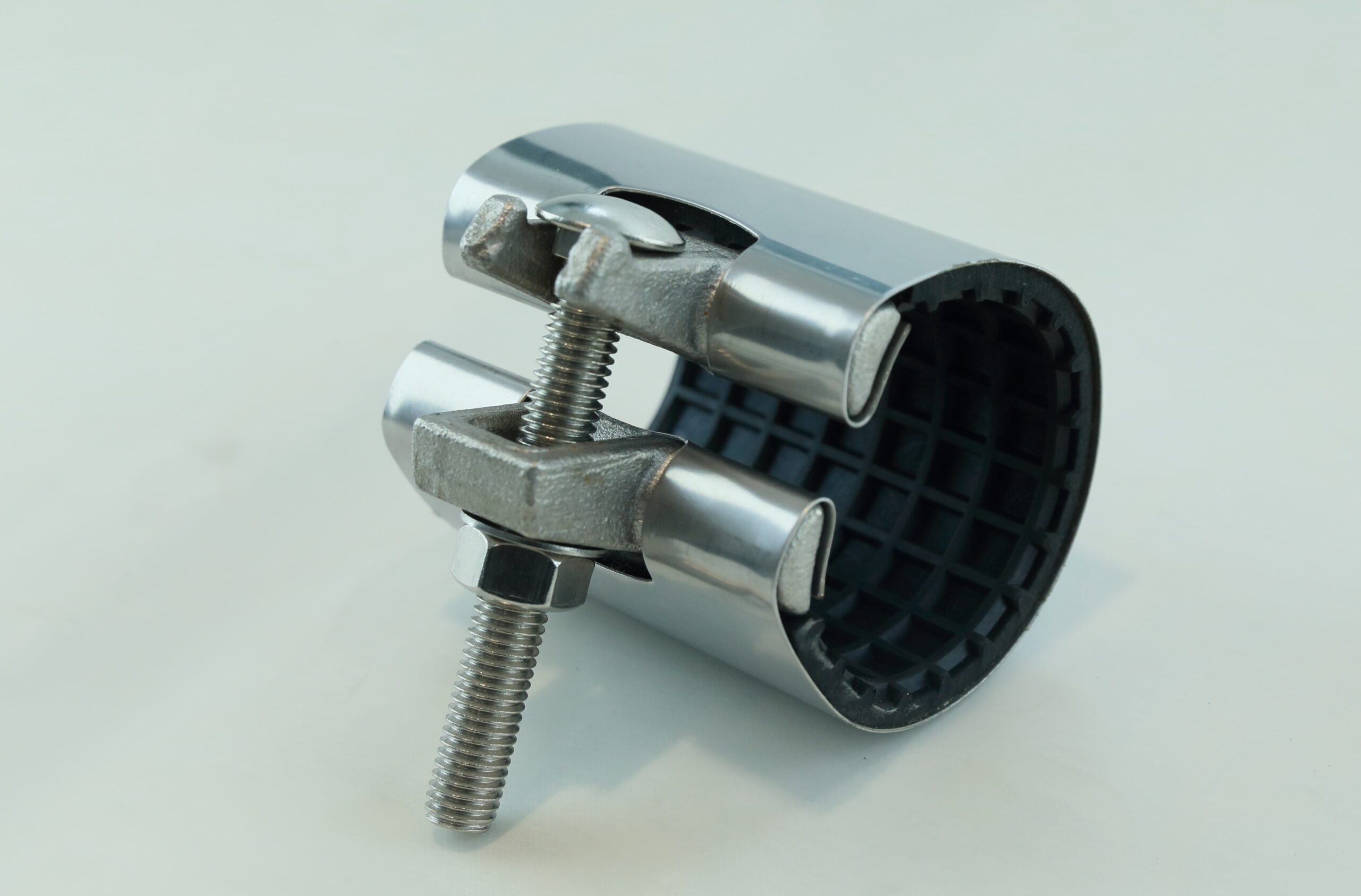

Main Parts and Materials：
· AISI201, AISI304,, AISI316 is available upon request.
| Item No. | Parts Name | Material |
| 1 | LUG | Ductile Iron |
| 2 | BOLTS | Galvanized Steel |
| 3 | GASKET | EPDM |
| 4 | WASHER | Galvanized Steel |
| 5 | NUTS | Galvanized Steel |
| 6 | BAND | Stainless Steel |
Dimensions (mm)：
| DN | Inch | Range | Width | Bolts Size | ||
| min | max | 1 bolts | 2 bolts | |||
| 15 | 1/2″ | 21 | 25 | 75 | 150 | M10X90 |
| 20 | 3/4″ | 26 | 30 | 75 | 150 | M10X90 |
| 25 | 1″ | 29 | 33 | 75 | 150 | M10X90 |
| 25 | 1″ | 33 | 37 | 75 | 150 | M10X90 |
| 32 | 1″1/4 | 42 | 45 | 75 | 150 | M10X90 |
| 32 | 1″1/4 | 44 | 48 | 75 | 150 | M10X90 |
| 40 | 1″1/2 | 48 | 51 | 75 | 150 | M10X90 |
| 40 | 1″1/2 | 50 | 54 | 75 | 150 | M10X90 |
| 40 | 1″1/2 | 55 | 60 | 75 | 150 | M10X90 |
| 50 | 2″ | 60 | 64 | 75 | 150 | M12X100 |
| 50 | 2″ | 65 | 69 | 75 | 150 | M12X100 |
| 65 | 2″1/2 | 69 | 73 | 75 | 150 | M12X100 |
| 65 | 2″1/2 | 71 | 76 | 75 | 150 | M12X100 |
| 65 | 2″1/2 | 78 | 82 | 75 | 150 | M12X100 |
| 80 | 3″ | 82 | 87 | 75 | 150 | M12X100 |
| 80 | 3″ | 87 | 93 | 75 | 150 | M12X125 |
| 80 | 3″ | 94 | 100 | 75 | 150 | M12X125 |
| 80 | 3″ | 99 | 104 | 75 | 150 | M12X125 |
| 100 | 4″ | 105 | 111 | 75 | 150 | M12X125 |
| 100 | 4″ | 112 | 117 | 75 | 150 | M12X125 |
| 100 | 4″ | 120 | 126 | 75 | 150 | M12X125 |
| 100 | 4″ | 126 | 131 | 75 | 150 | M12X125 |
| 125 | 5″ | 131 | 136 | 75 | 150 | M12X125 |
| 125 | 5″ | 139 | 145 | 75 | 150 | M12X125 |
| 125 | 5″ | 149 | 155 | 75 | 150 | M12X125 |
| 150 | 6″ | 156 | 162 | 75 | 150 | M12X125 |
| 150 | 6″ | 167 | 173 | 75 | 150 | M12X125 |
| 175 | 7″ | 173 | 179 | 75 | 150 | M12X125 |
| 200 | 8″ | 217 | 223 | 75 | 150 | M12X125 |
| 200 | 8″ | 223 | 229 | 75 | 150 | M12X125 |
